VLX 100 Swing / Entry Door

VLX 100 Swing / Entry Door in Orlando, FL | Westlight Windows Orlando

The VLX 100 Swing / Entry Door is a single-panel aluminum entry system built around one idea: a door should open clean and close tight, every time, for years. It uses a minimalist frame with a multi-point locking mechanism, which means fewer visible joints and more actual security. Homeowners across Orlando choose it for modern builds, mid-century remodels, and any entry where the view matters as much as the door. Westlight Windows Orlando is an authorized ViewLux installation partner, so you get factory-backed product knowledge plus local installation that won’t void your warranty. Call (850) 493-7894 to talk specs, finishes, or a free site measurement.

Call (850) 493-7894

Product Overview – VLX 100 Swing / Entry Door

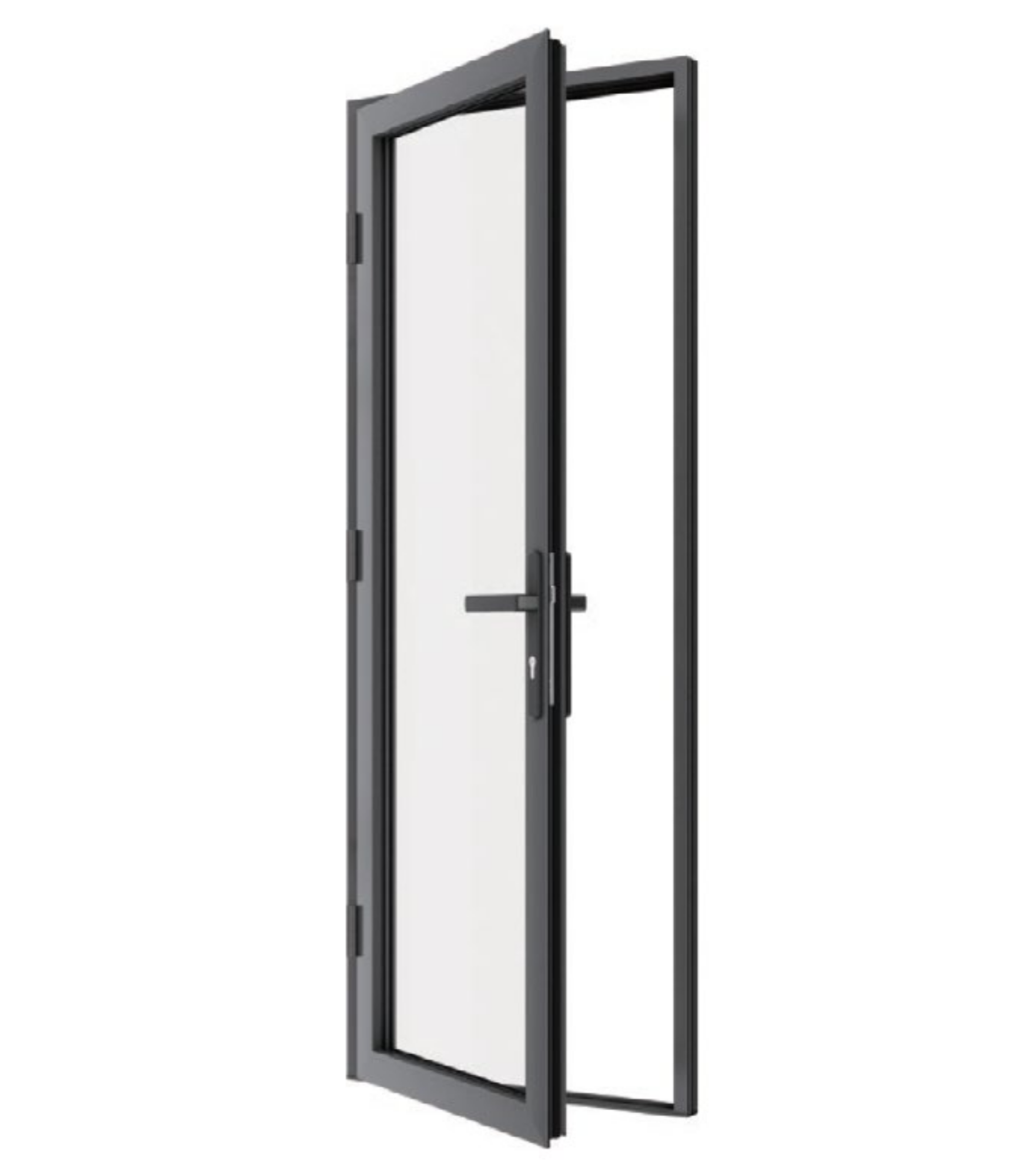

The VLX 100 is a modern aluminum swing door designed as a single entry point with a deliberately slim frame. The profile width measures just 2.56 inches, which keeps sightlines clean and lets more glass carry the visual weight of the doorway. That’s why architects and builders in the Orlando area keep coming back to this series: it gives you a true floor-to-ceiling glass entry without the bulky perimeter framing you see on older aluminum or vinyl doors.

What separates the VLX 100 from cheaper swing doors is the engineering behind the frame. The aluminum wall thickness runs 0.098 inches, which is substantial enough to resist racking and bowing under daily use and Florida humidity swings, yet slim enough to keep the minimalist aesthetic intact. The multi-point locking system engages at several points along the door slab, not just a single latch at the handle. That spreads the locking force across the full height of the panel, which improves both security and seal compression.

This door fits homes where the entry is a statement. Think modern concrete block homes in Baldwin Park, renovated bungalows in College Park, or lakefront builds in Windermere where the front door frames a water view. It’s not a mass-market builder-grade door. It’s a product you choose when you want the entry to feel architectural rather than incidental. Westlight Windows Orlando installs the VLX 100 across Orange, Seminole, and Osceola counties, and we’ve put these doors in everything from single-story ranches to two-story custom homes near downtown Orlando.

Technical Specifications

• Frame material: Extruded aluminum with a wall thickness of 0.098 inches
• Profile width: 2.56 inches (slim sightline profile)
• Maximum panel width: Up to 48 inches for a single swing panel
• Configuration: Single entry, in-swing or out-swing depending on site conditions
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Screen options: Retractable screen or no screen
• Locking: Multi-point locking system integrated into the door slab
• Thermal performance: Thermal break technology, NFRC-rated
• Installation standard: AAMA 2400/2410 compliant installation by Westlight Windows Orlando

Performance Features

Thermal Efficiency
The VLX 100 uses a thermal break in the aluminum frame, which interrupts the direct path heat takes through metal. That matters in Orlando, where July afternoons routinely push past 90 degrees and the sun hits west-facing entries hard. NFRC-rated performance means the numbers are tested, not estimated. Pair the thermal break with Low-E glass and the door keeps conditioned air inside where it belongs.

Acoustic Performance
If you live near I-4, the 408, or a busy cut-through street in Winter Park, you know road noise finds every gap. Laminated glass plus the compression seal from the multi-point lock system cuts sound transmission noticeably. It’s not a recording studio door, but it outperforms typical wood or vinyl entries by a meaningful margin. The difference is most obvious in the evening when traffic patterns slow and the house finally goes quiet.

Airtightness & Weather Seal
Florida entries deal with two air problems: hot air pushing in during the summer and conditioned air leaking out year-round. The VLX 100 addresses both with continuous perimeter gasketing and the multi-point lock that pulls the slab evenly into the frame. Every lock point acts as a compression point, so the seal stays consistent from top to bottom rather than tight at the latch and loose at the corners.

Waterproofing
Orlando gets roughly 50 inches of rain a year, often in short violent bursts. A door that leaks during a summer thunderstorm isn’t just an annoyance, it’s a water-damage problem for flooring and drywall. The VLX 100’s sill design and frame drainage direct water away from the interior, and Westlight Windows Orlando seals every perimeter joint with AAMA 812 low-expansion foam before finishing. That’s the difference between a door that survives one rainy season and one that survives fifteen.

Wind Resistance
Hurricane season in Central Florida means wind-pressure ratings matter even if you’re not on the coast. Orlando sits far enough inland that sustained hurricane-force winds are less common, but strong thunderstorm gusts and tropical storm remnants hit every year. The VLX 100’s 0.098-inch frame wall thickness and structural aluminum construction handle local wind-load requirements, and the impact-resistant laminated glass option adds another layer of protection for exposed entries.

Security & Hardware

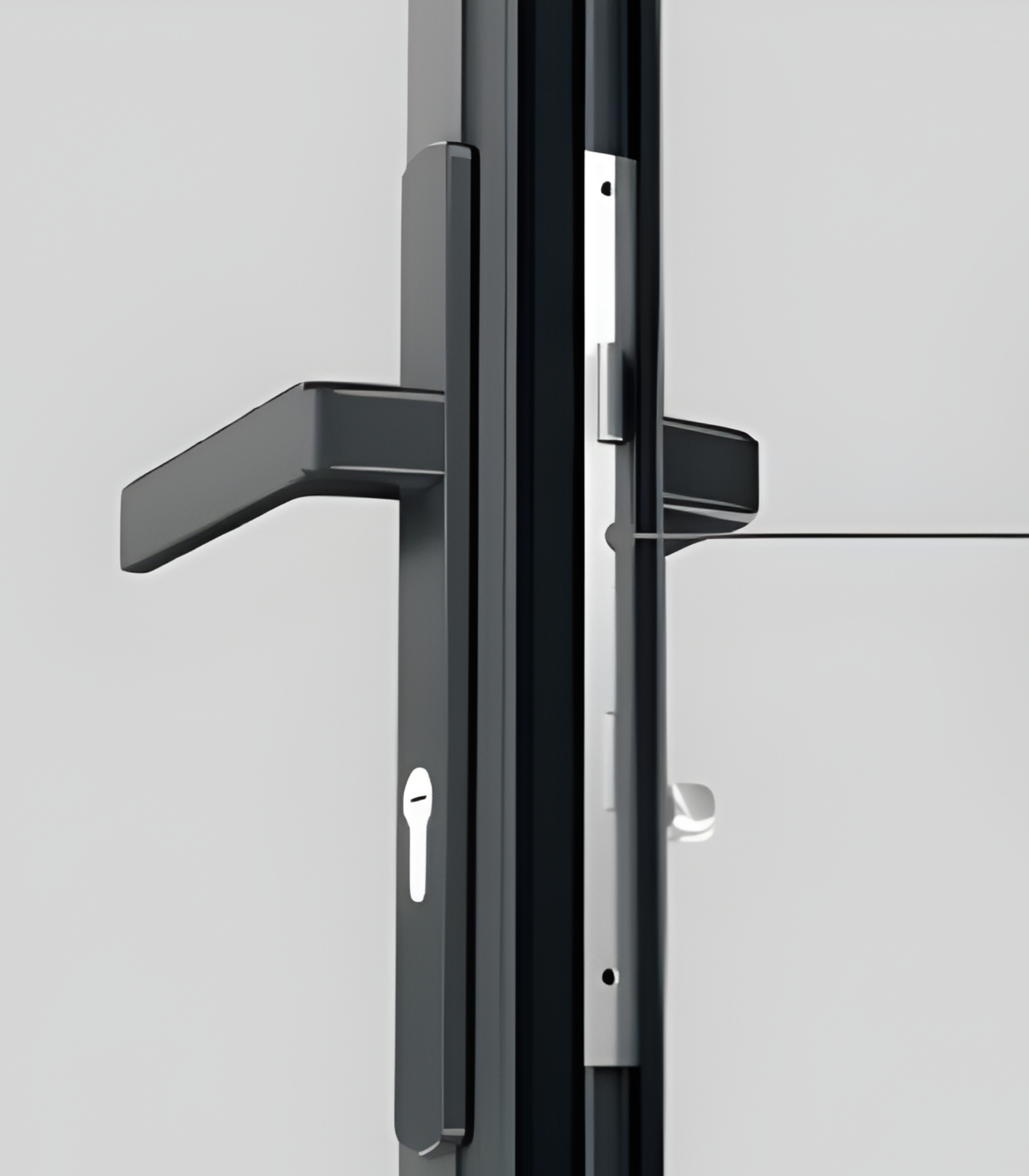

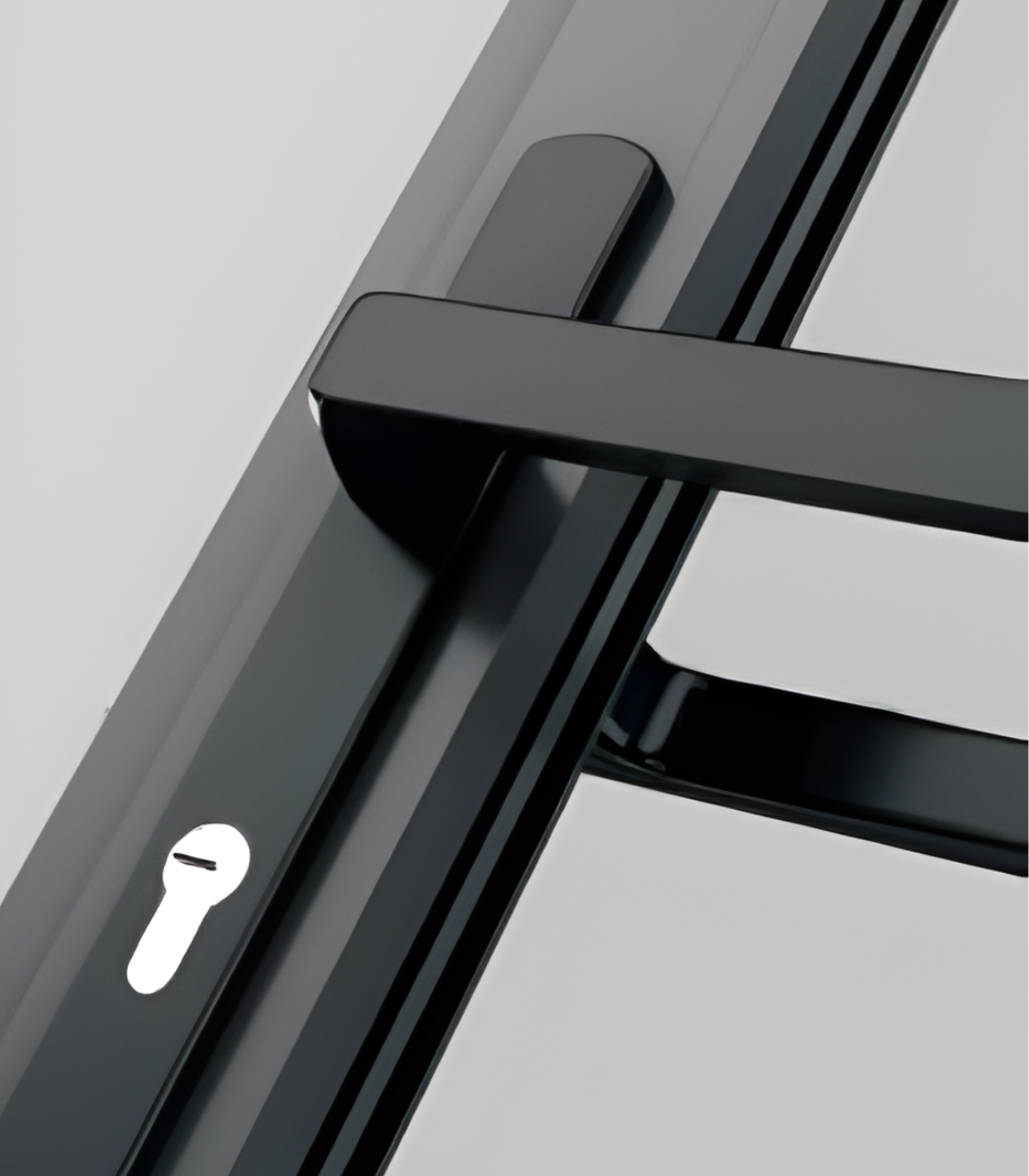

The multi-point locking system is the headline here. Instead of a single deadbolt, the door engages locking points along the full height of the slab. Forced entry becomes much harder because the force gets distributed rather than focused on one strike plate. The aluminum frame is also harder to pry than wood. For Orlando homeowners who travel during the summer or leave for extended periods, that’s real peace of mind.

Color & Glass Options

The VLX 100 comes in six finishes, and the right choice depends on your home’s architecture. Premium Black is the most requested finish in Orlando right now, especially on modern and contemporary builds where strong contrast against white stucco or light brick creates a defined entry. Pure White works well on coastal-inspired homes and traditional Florida designs. Anodized Silver gives a raw metallic look that suits industrial and minimalist architecture. Bronze is a warmer dark tone that reads less stark than black and pairs nicely with wood accents. Champagne is a softer metallic that complements beige, cream, and earth-tone exteriors common in older Orlando subdivisions. Teak Wood is a wood-grain finish that mimics natural timber without the maintenance, good for homes where a wooden entry fits the character but an actual wood door would warp in Florida humidity.

On the glass side, Clear maximizes visibility and light. Frosted and Obscure are for entries where you want privacy without losing brightness, like a door that faces a street or a close neighbor. Low-E improves energy performance and reduces UV damage to interior flooring and furniture. Tempered glass is safety-rated and shatters into small pieces rather than sharp shards. Laminated glass offers impact resistance and better sound control, and it’s the option we recommend most for Orlando entries that face west or sit on busy streets.

Installation by Westlight Windows Orlando in Orlando

We install the VLX 100 the way the manufacturer requires, because a door that’s installed incorrectly will fail regardless of how well it’s built. Every Westlight Windows Orlando installation starts with a pre-install inspection of the rough opening. We check the subfloor for level, the jambs for plumb, and the header for deflection. If the opening isn’t right, we fix it before the door goes in, not after.

The door gets set level, plumb, and square. That sounds basic, but it’s where a lot of installations go wrong. An out-of-square door binds at the hinges, leaks at the corners, and wears out locks prematurely. We use shims at every anchor point and check the slab alignment with the frame before any foam or trim goes in. Then we seal the full perimeter with AAMA 812 low-expansion foam sealant. That foam does three things at once: it insulates the rough opening gap, it blocks air movement, and it creates a water-resistant barrier at the frame-to-structure junction.

All of our installations follow AAMA 2400/2410 standards for window and door installation. That’s the industry reference for proper flashing, sealing, and anchoring in residential and light commercial applications. After the door is anchored and sealed, we run a water test on the sill and lower corners to confirm drainage is working as designed. Then we clean the job site, haul the old door and packaging, and walk through the operation with you.

Orlando’s climate shapes how we approach every step. The humidity means sealant selection matters more than in drier regions. The afternoon thunderstorms mean sill drainage gets extra attention. And the local building codes in Orange County and the City of Orlando require specific anchoring and wind-load considerations that a generic installer might skip. We pull permits when required and we don’t cut corners, because an improper installation voids the manufacturer warranty on the VLX 100, and that’s a risk no homeowner should take on a premium entry door.

Frequently Asked Questions – VLX 100 Swing / Entry Door

Get a Quote – VLX 100 Swing / Entry Door in Orlando

The VLX 100 Swing / Entry Door is a serious upgrade for any Orlando home, and the best way to know your exact cost is a free on-site measurement. We’ll assess your opening, talk through glass and finish options, and give you a written line-item quote with no surprises. Call Westlight Windows Orlando at (850) 493-7894 to start your project or schedule a free estimate today.

Written by the team at Westlight Windows Orlando, authorized ViewLux installation partner serving Orlando and Central Florida.
