The VLX 138 Panoramic Sliding Door is a luxury large-span slider built for homeowners in Orlando, FL who want an entire wall of glass that opens without effort. It delivers expansive, uninterrupted views and an ultra-smooth glide on stainless bearings, which means even a 36-foot panel moves with two fingers. Westlight Windows Orlando is an authorized installation partner for ViewLux, the manufacturer behind this series. That partnership matters: we know the product at the engineering level, we install it to AAMA standards, and we stand behind the work. Call (850) 493-7894 to talk about your project.

Call (850) 493-7894

Product Overview – VLX 138 Panoramic Sliding Door

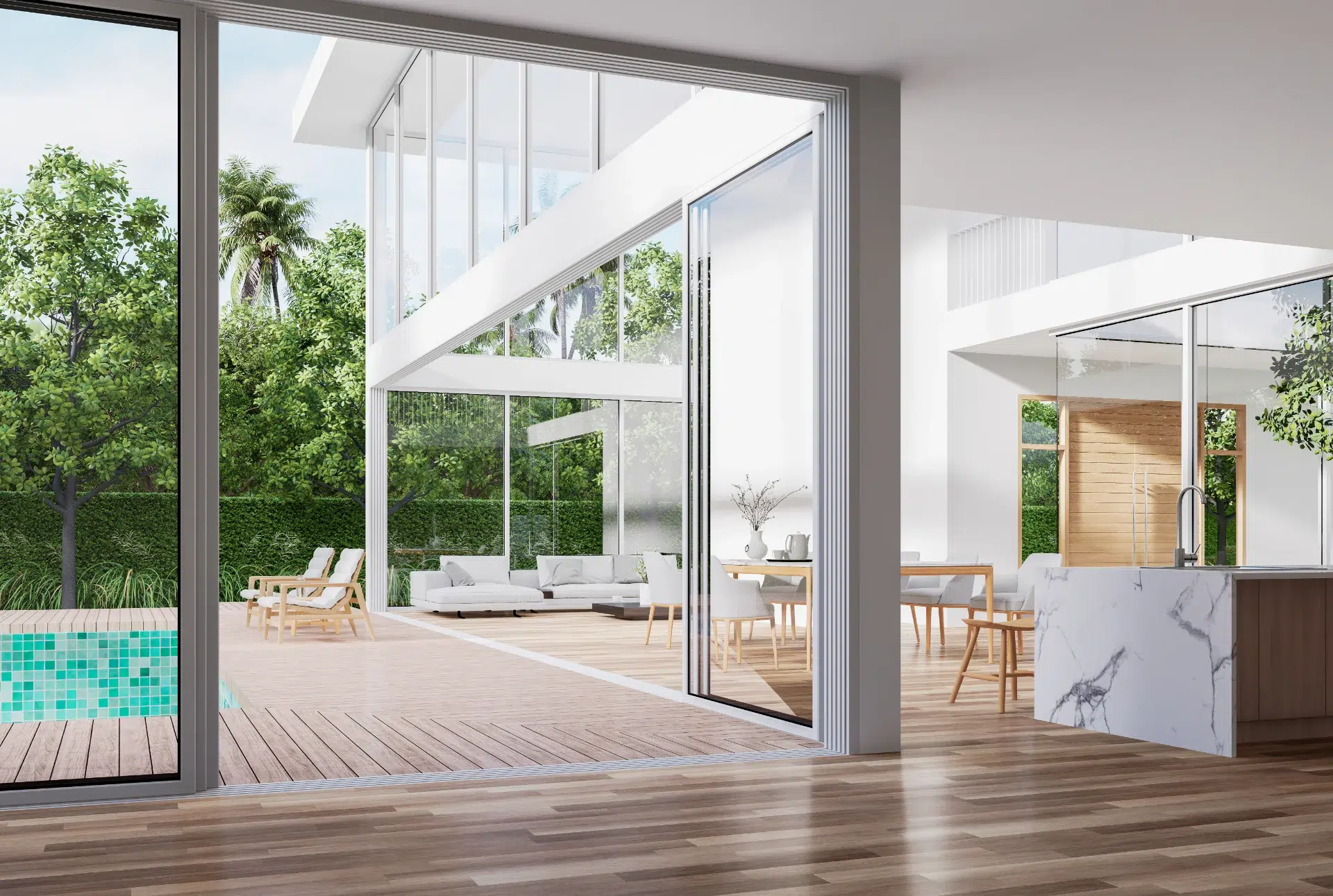

The VLX 138 is designed for the moment when a room stops being a room and becomes part of the outdoors. Think pool decks in Winter Park, lakefront living rooms in Windermere, or modern builds in College Park where the back wall is mostly glass. This series is the answer when you want a sliding door that disappears into the architecture rather than interrupting it.

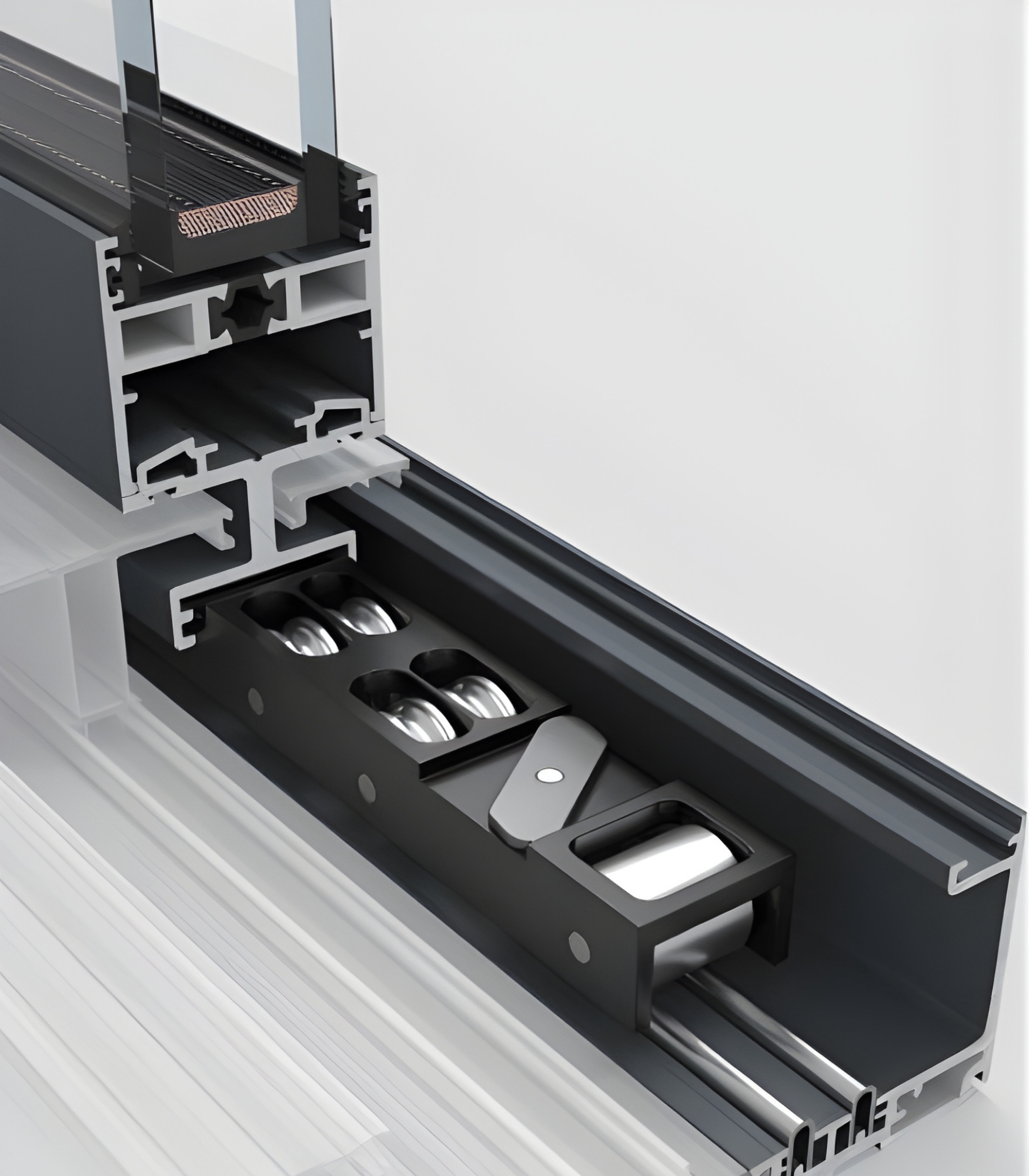

The frame starts with aluminum wall thickness of 0.138 inches, which gives the door its structural backbone without looking bulky. Profile width sits at 1.535 inches, slim enough to maximize glass area while still holding up to Florida sun and storm cycles. What sets the VLX 138 apart from standard sliders is the stainless bearing system in the track, which is why the door opens and closes with so little resistance. You will notice the difference the first time you slide it.

Buyers in Orlando choose this series for three reasons. First, the maximum span of up to 36 feet wide means you can create a genuinely open corner or a full wall of moving glass, not just a standard patio door. Second, the track configurations (2-track, 3-track, and 4-track) let you stack panels so that the opening is nearly clear when the door is fully open. Third, the hardware and frame are built to take Florida weather without warping, sticking, or corroding. Westlight Windows Orlando has installed this door across greater Orlando, and the feedback we hear most often is that people did not expect a sliding door to feel this solid.

Technical Specifications

Here is the specification sheet, reworded so you can actually read it. These numbers matter when you are comparing products side by side.

• Wall thickness: 0.138 inches – the aluminum extrusion gauge that gives the frame its rigidity.
• Profile width: 1.535 inches – slim sightlines, more glass, less frame.
• Maximum span: Up to 36 feet wide, depending on panel count and glass weight.
• Track configurations: 2-track, 3-track, or 4-track setups for different opening ratios.
• Glass options: Clear, Low-E, Frosted, Obscure, Black Tint, Gray Tint.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood.
• Screen options: Retractable screen or sliding screen.

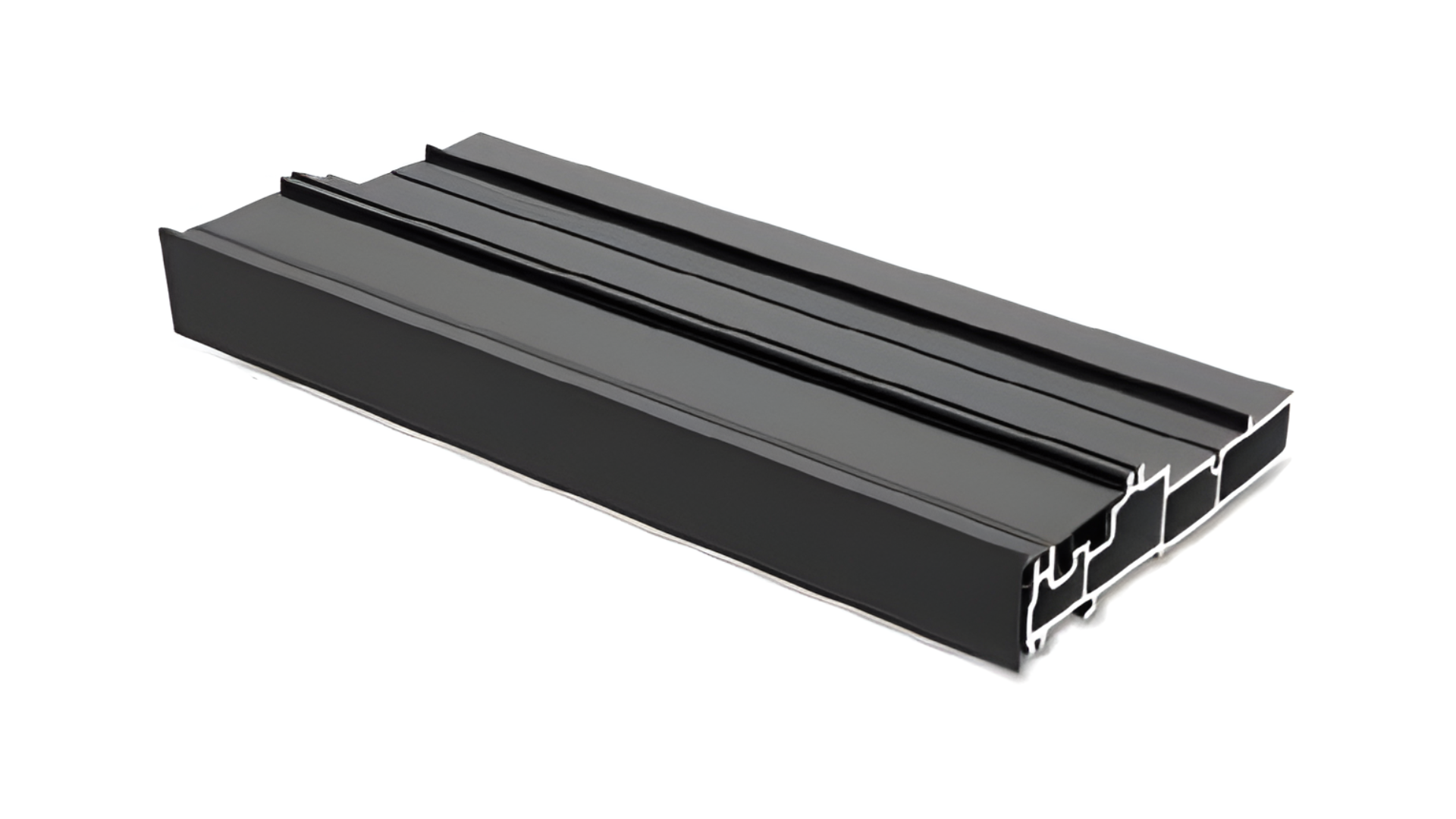

• Sill options: Flush sill, low-profile sill, or recessed sill.
• Performance: Thermal break technology, NFRC-rated energy performance, AAMA 2400/2410 installation compliance, impact-resistant laminated glass available as an option.

If you are in Orlando and want to see how these specifications translate to a real installation, call Westlight Windows Orlando at (850) 493-7894.

Performance Features

Thermal Efficiency

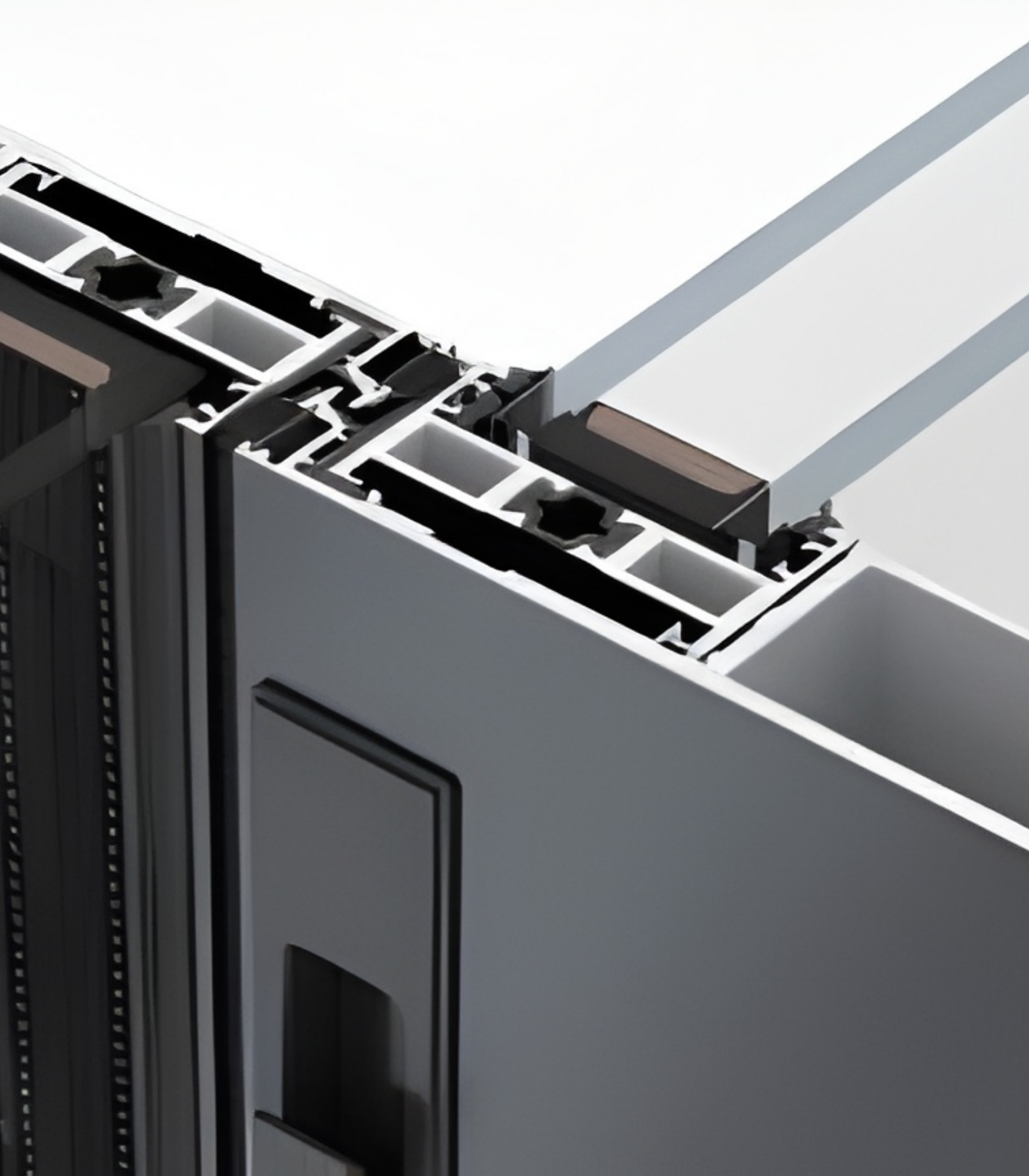

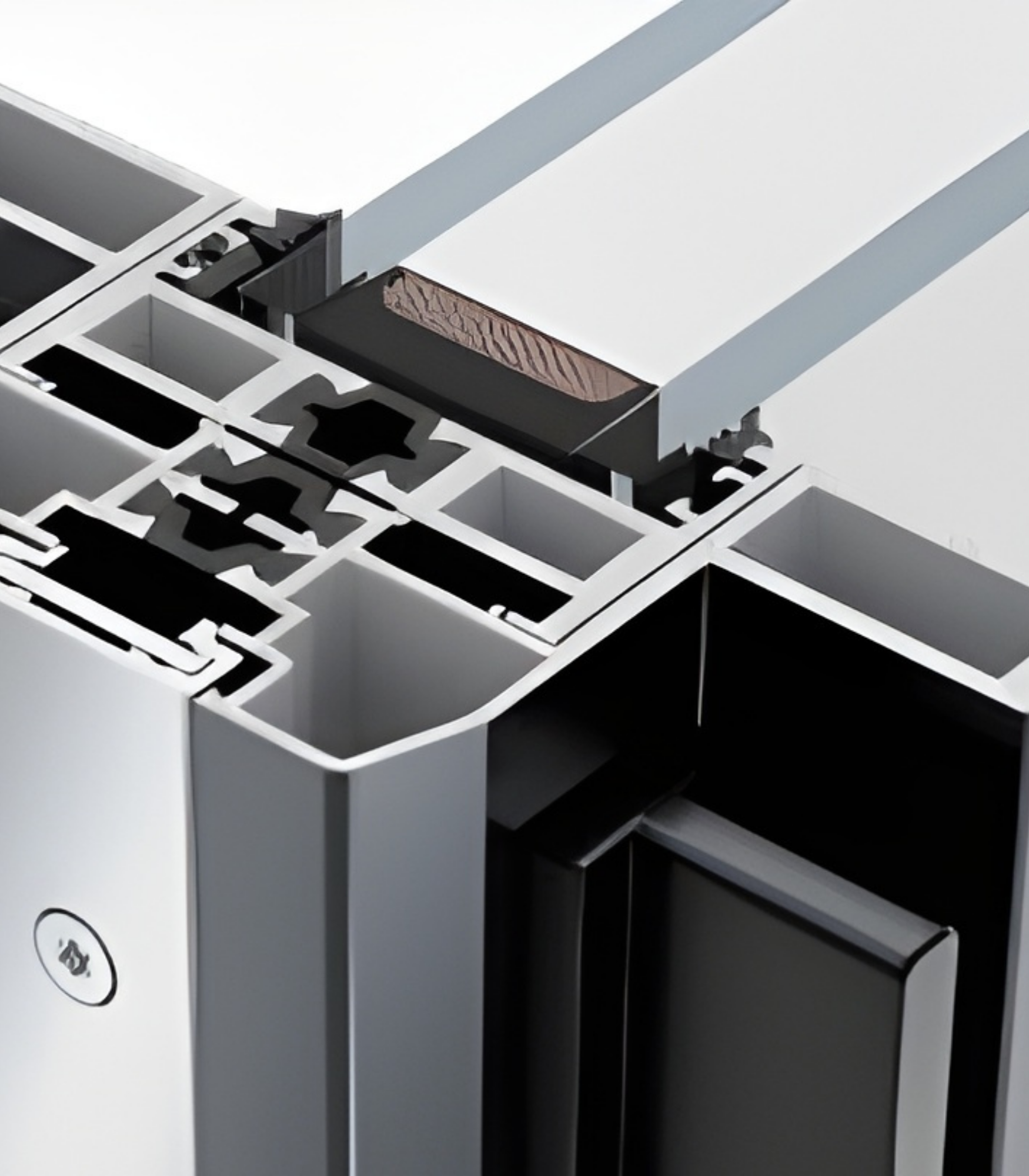

The VLX 138 uses a thermal break inside the aluminum frame, which interrupts heat transfer from the outside to the inside. That matters in Orlando where summer sun hits glass for twelve hours a day. NFRC-rated performance means the numbers are tested, not claimed. Homeowners notice lower cooling loads in rooms facing west or south.

Acoustic Performance
Aluminum frames with quality glass can significantly reduce outside noise. If you live near I-4, the Turnpike, or a busy road in Dr. Phillips or Winter Garden, the laminated glass option combined with the VLX 138’s weather sealing cuts traffic and neighborhood noise noticeably. The door becomes a sound barrier as much as a door.

Airtightness & Weather Seal

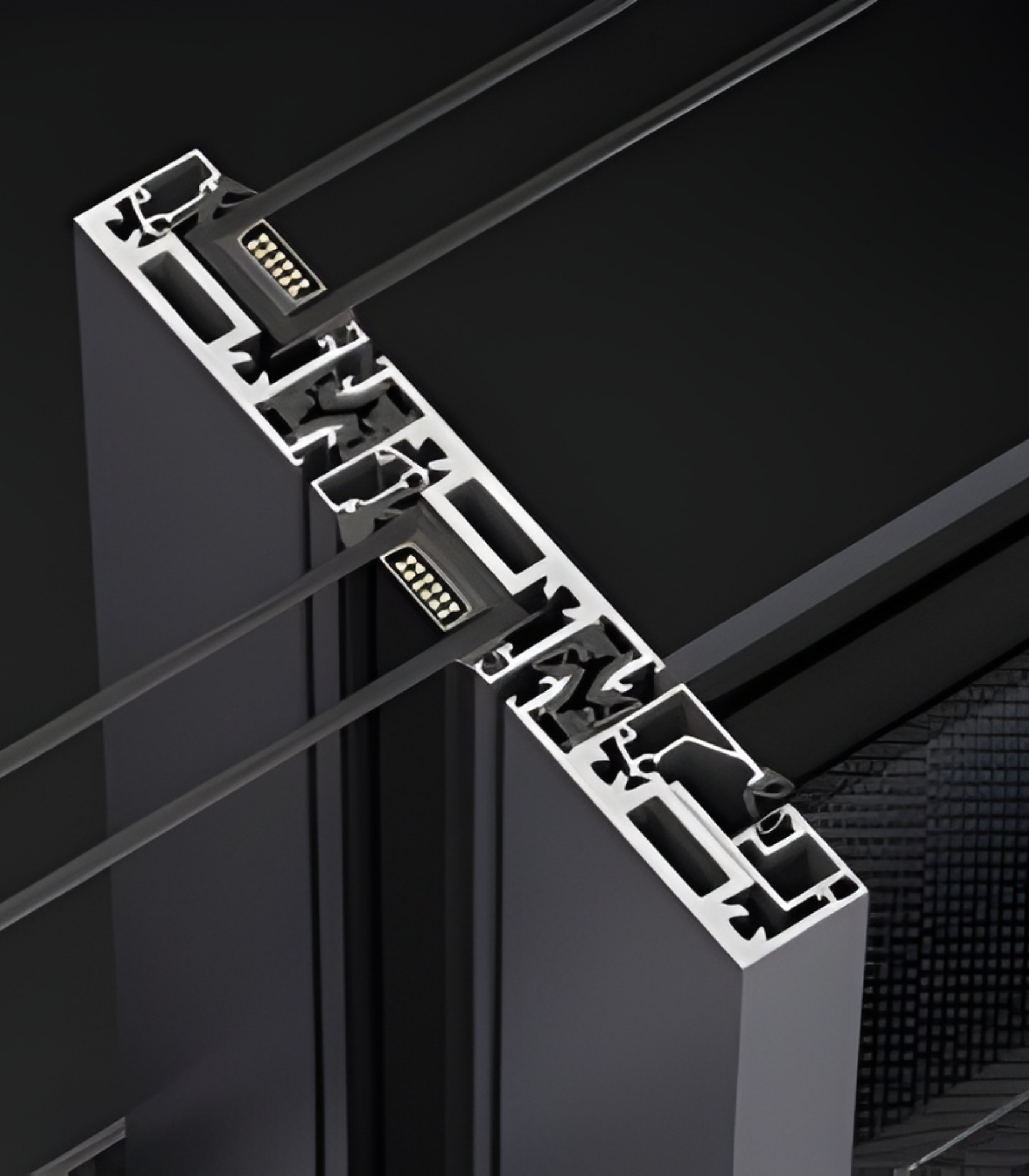

The perimeter of every panel seats against a compression gasket system that blocks air infiltration. In a humid climate like Orlando’s, that means fewer drafts, less dust, and lower indoor humidity when your AC is running. Westlight Windows Orlando also seals every perimeter joint with AAMA 812 low-expansion foam during installation.

Waterproofing

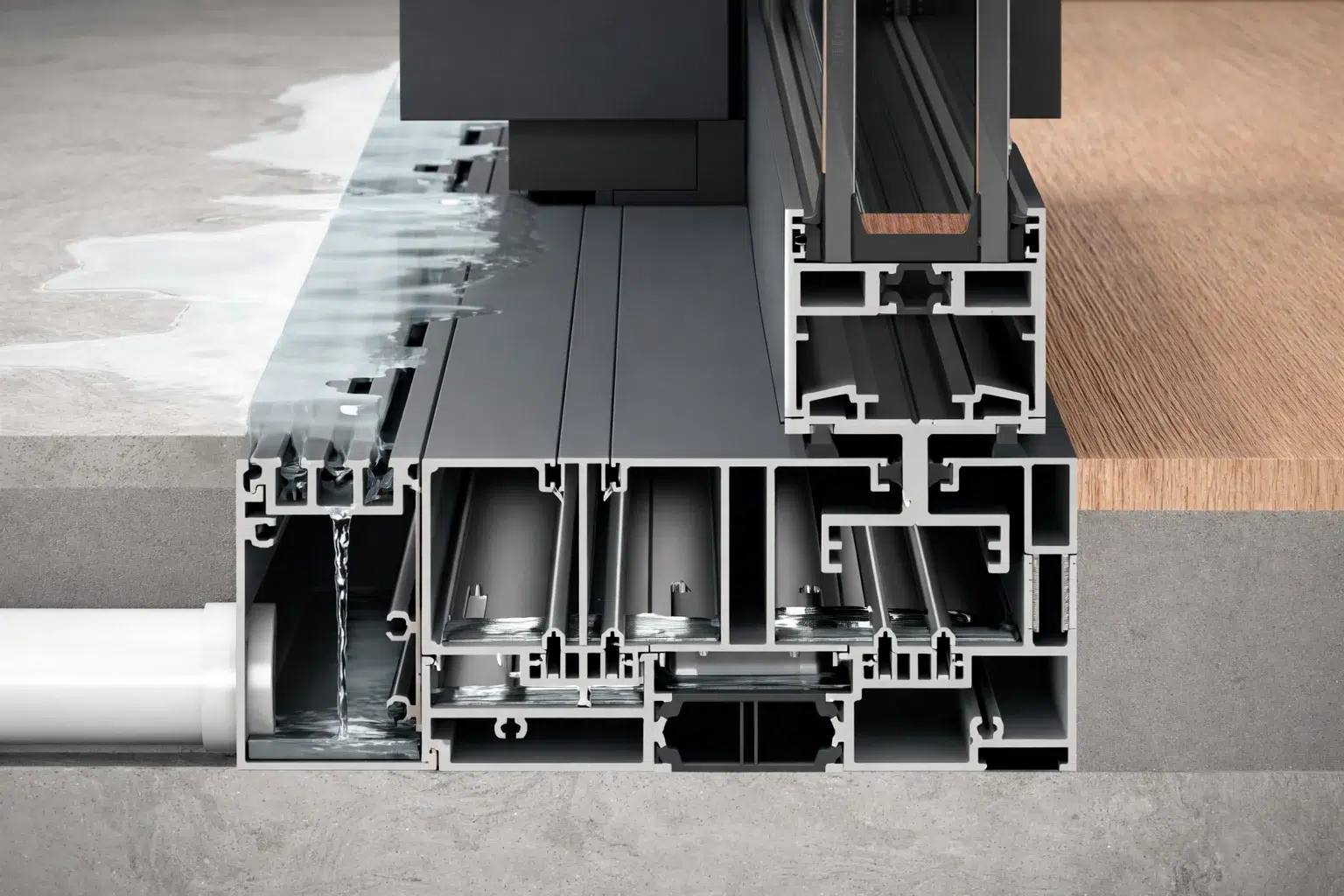

Central Florida gets somewhere around 50 inches of rain a year, often in violent afternoon storms. The VLX 138’s sill options (flush, low-profile, or recessed) are engineered to direct water away from the interior. Proper slope, drainage channels, and a correct sill install keep water outside where it belongs.

Wind Resistance
The VLX 138 is wind-load rated for local climate requirements, and the impact-resistant laminated glass option is available for Orlando homes where wind-driven debris is a real concern. If your property is in a wind-borne debris zone, mention that when you call. We will spec the correct glass package for your address.

Security & Hardware

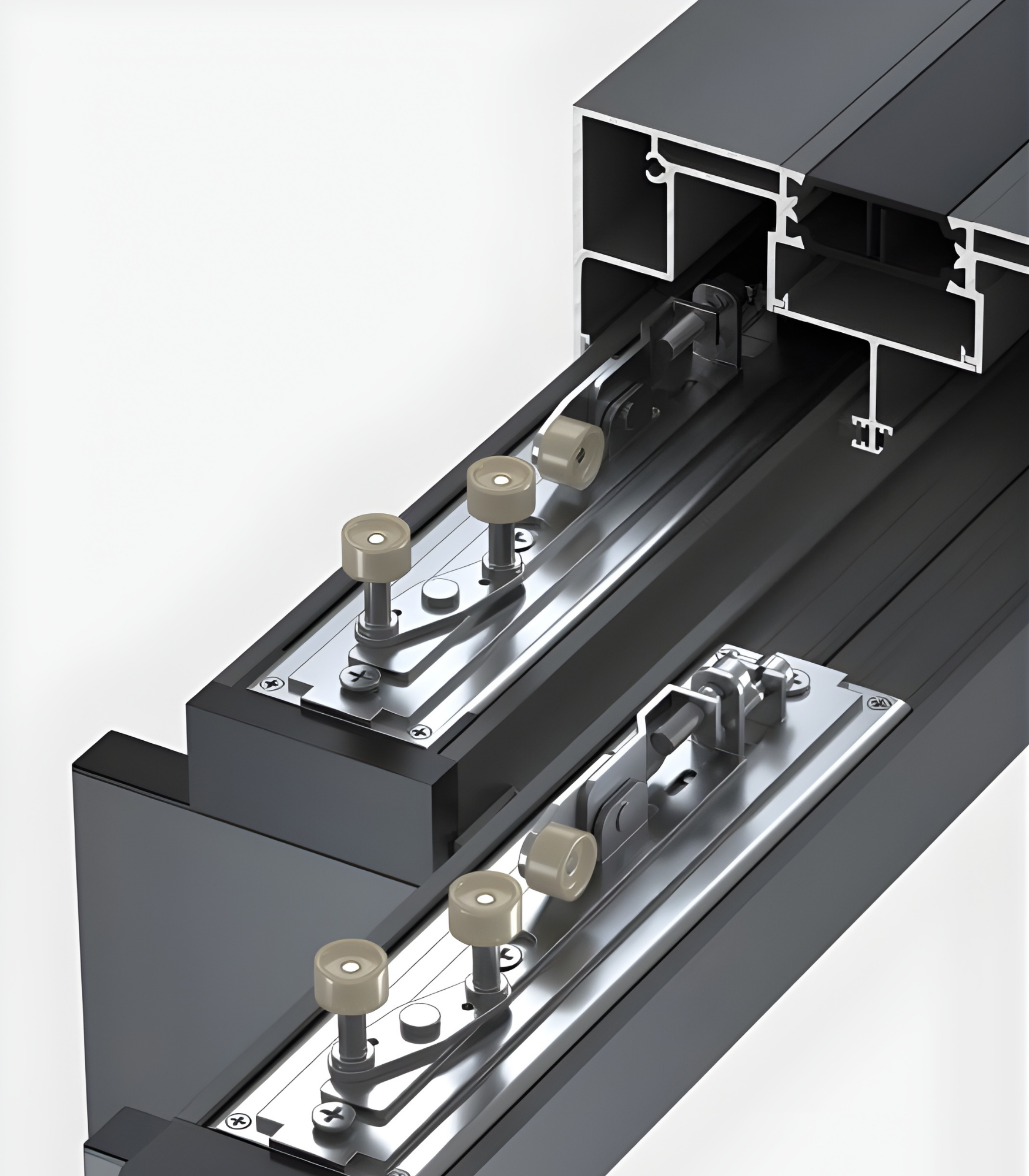

Multi-point locking hardware is the standard approach on this series. The panels sit in reinforced track channels and cannot be lifted out from the outside when properly locked. The stainless bearing rollers are housed inside the frame, so the hardware that makes the door glide is also the hardware that keeps it secure.

Color & Glass Options

The VLX 138 comes in six finish options, and the right choice depends on your architecture. Premium Black is far and away the most common choice in modern Orlando builds, especially in neighborhoods like Baldwin Park and Lake Nona, where black frames against white walls and light floors photograph beautifully. Pure White suits coastal-inspired homes and traditional Floridian styles. Anodized Silver is a commercial-leaning finish that works on contemporary homes with stainless or chrome interior hardware. Bronze and Champagne sit in the mid-tone range, warm but not heavy, and they read upscale on Mediterranean and Spanish-style homes. Teak Wood gives you a wood-grain look without the maintenance of real wood, which is useful in Orlando’s humidity.

Glass is equally important. Clear is the default. Low-E is the upgrade most Orlando buyers choose because it reflects solar heat while staying visually neutral. Frosted and Obscure glass are for privacy situations, like a bathroom or a closet opening onto a patio. Black Tint and Gray Tint reduce glare and heat gain, and they look assertive on a modern house. Impact-resistant laminated glass is the safety upgrade for storm-prone areas. If you are replacing existing sliding doors in an older Orlando home, the upgrade from clear single-pane glass to Low-E laminated is the single biggest comfort difference you will feel.

Installation by Westlight Windows Orlando in Orlando

Here is what we want every Orlando homeowner to understand before they buy a sliding door: the product is only as good as the installation. A VLX 138 installed poorly will leak, bind, and eventually fail. The same door installed correctly will perform for decades.

Westlight Windows Orlando follows a defined process on every VLX 138 install. It starts with a pre-install inspection of the rough opening, the existing header, and the floor condition. We check for level, plumb, and square before the door ever comes off the truck. If the opening is out of tolerance, we correct it before setting the frame. Then we set the frame, shim as needed, and verify level, plumb, and square at multiple points.

Once the frame is set, we seal the entire perimeter with AAMA 812 low-expansion foam. This is not optional. It prevents air leakage, blocks moisture migration, and maintains the thermal performance of the assembly. We install per AAMA 2400/2410 standards, which is the recognized industry standard for window and door installation. After the panels go in, we test the operation of every track and lock, run a water test around the sill, and walk you through the door’s operation.

Orlando’s climate adds urgency to all of this. Intense afternoon heat, hurricane-season wind events, and high humidity mean your door has to handle thermal expansion, wind pressure, and constant moisture without moving or failing. A shortcut on the perimeter seal here is not a cosmetic issue. It is a water intrusion issue that shows up during the first summer storm. We do not shortcut.

We also make sure the door is registered with the manufacturer for warranty purposes. Improper installation can void the manufacturer warranty, so hiring a licensed installer like Westlight Windows Orlando protects your investment from day one.

Frequently Asked Questions – VLX 138 Panoramic Sliding Door

Get a Quote – VLX 138 Panoramic Sliding Door in Orlando

If you are planning a new build, a major remodel, or a replacement project in Orlando, the VLX 138 deserves a hard look. Westlight Windows Orlando will measure your opening, quote your exact configuration, and install the door to AAMA standards. Call (850) 493-7894 to schedule a free on-site measurement and get a written line-item quote.
